Loading Dock Ramps | Copperloy Dock Equipment | Made In The USA
Copperloy Yard Ramps | Portable Forklift Ramps

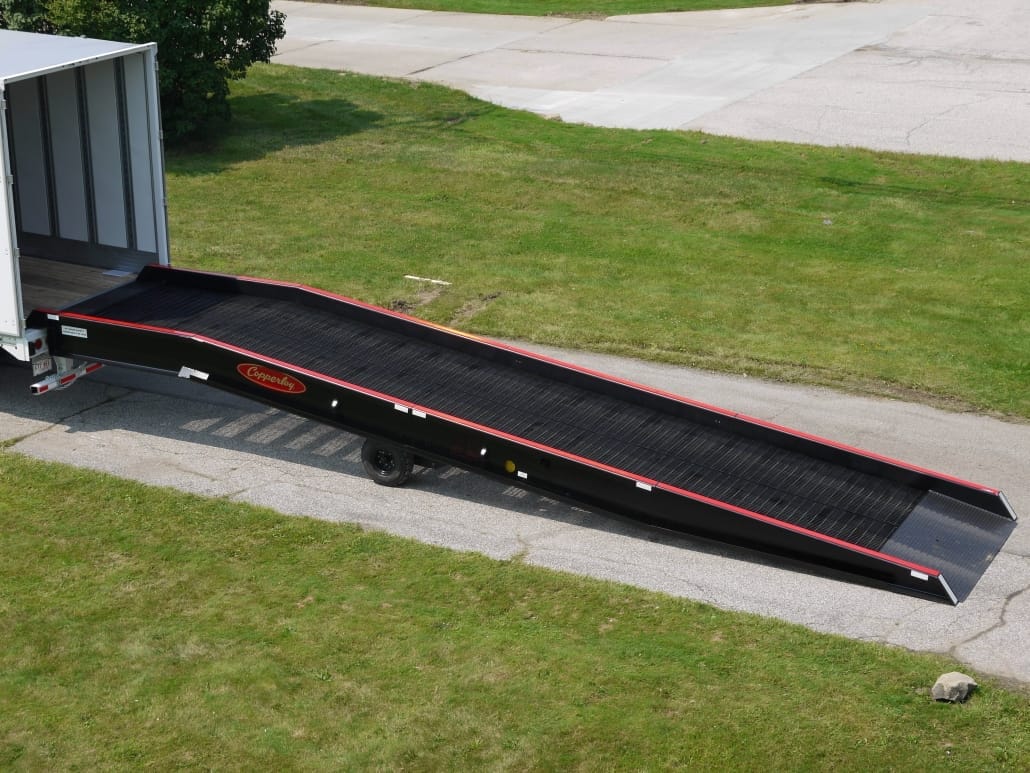

Copperloy Loading Dock Ramp

The YARD RAMP Site loading dock ramp are significantly improves productivity, increase safety, and maximize space. We use our sixty years of experience in the industry to manufacture America’s best loading dock ramp. Our one-cylinder loading dock ramp design applies significantly less pressure relative to other ramps on the market. This design choice has created many beneficial features:

  • Easier operation – The hydraulic pump’s external location provides convenient access to simplify operation.
  • Faster raise times – YARD RAMP Site loading dock ramps raise two and a half times faster than competing ramps.
  • Less wear and tear – Rotation is focused on our ramp’s position sleeve rather than the ramp’s connection, which reduces overall wear and tear.
  • Greater stability – Our ramps are much less likely to tip thanks to the centrally-located cylinder.

Loading Dock Ramp

Features of the Loading Dock Ramp

8-Foot Level Off

When designing a loading dock ramp, forklift access is always a top concern. Our ramps implement an 8-foot level off to make forklift access a safe and easy process.

15-Inch Lip

This feature rests on the dock platform, floor, or truck carrier body. Our loading dock ramps also come with 8-foot safety chains to ensure the ramp does not pull away from the dock.

Hydraulic Pump

Our dock ramp’s single-acting hydraulic pump only needs half the usual effort to raise the ramp relative to other loading dock ramps. The pump’s new location is more convenient for operation and maintenance, while protecting it from dirt, debris, and other forms of damage. The handle can also be stored away if not in use.

Low End Plate

Each YARD RAMP Site loading dock ramp has a lower end plate than a forklift’s wheelbase. Therefore, the front wheels of the forklift can always reach the grating without the back wheels leaving the ground. This prevents any bumps during forklift travel onto trucks and docks and provides simpler ground-level entry.

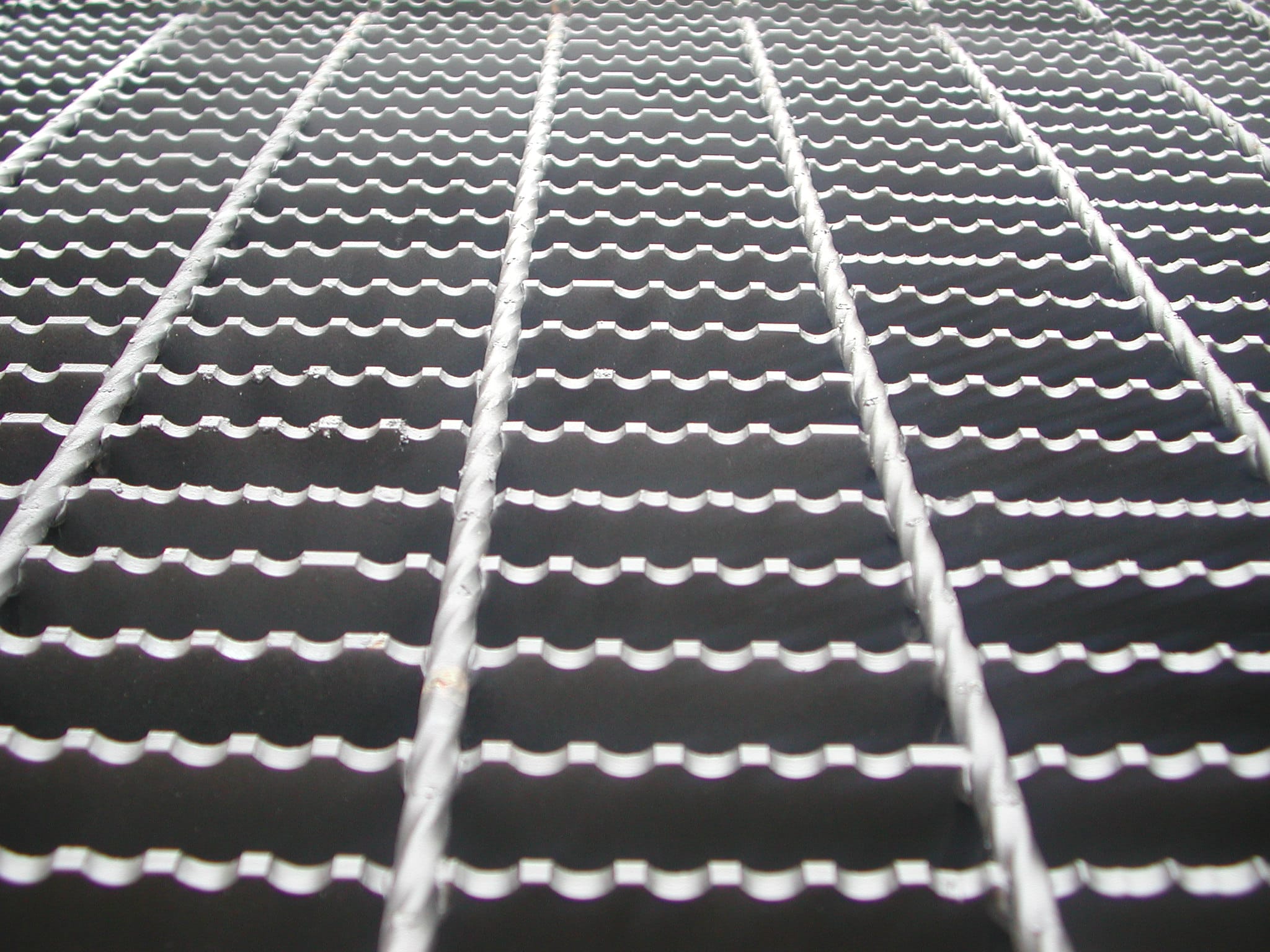

Loading Dock Ramp Deck Grating

Our loading dock ramps contain high-strength steel. Our loading dock ramp’s grating can withstand even the toughest environments. The one and three-quarter inch spacing between bars allows rain, snow, and other debris to pass through. Furthermore, the serrated grating ensures traction in all weather conditions.

Safety Curb

This 7-inch safety curb is a feature on all YARD RAMP Site ramps to eliminate the chances of runoff.

18-Inch Solid/Pneumatic Tires

Solid/pneumatic tires are other staple feature of YARD RAMP Site ramps. These tires do not need to be refilled, have lubricated bearings, and are virtually maintenance free.

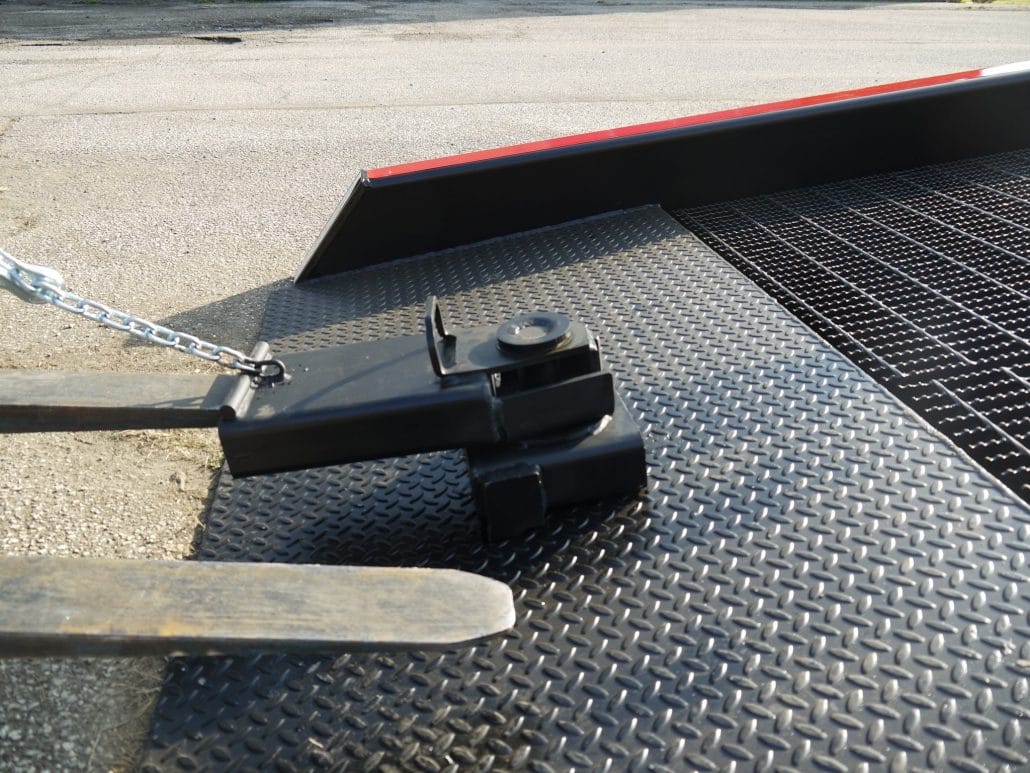

The Loading Dock Ramp Positioning Sleeve

The ramp’s positioning sleeve provides 180 degrees for the ramp maneuverability, saving time and increasing efficiency. The fork slides into the sleeve, and the loading dock ramp can be repositioned with ease. All of Copperloy’s all-steel loading dock ramps implement the positioning sleeve. This sleeve is not designed for long-distance towing.


For our steel and aluminum loading dock ramps, we include a towbar, which attaches to the lower end of the ramp. Operators can tow the ramp short distances at a max towing speed of 5-mph. This towbar is not designed for over-the-road towing.

Create a Dock Anywhere with Our Loading Dock Ramps

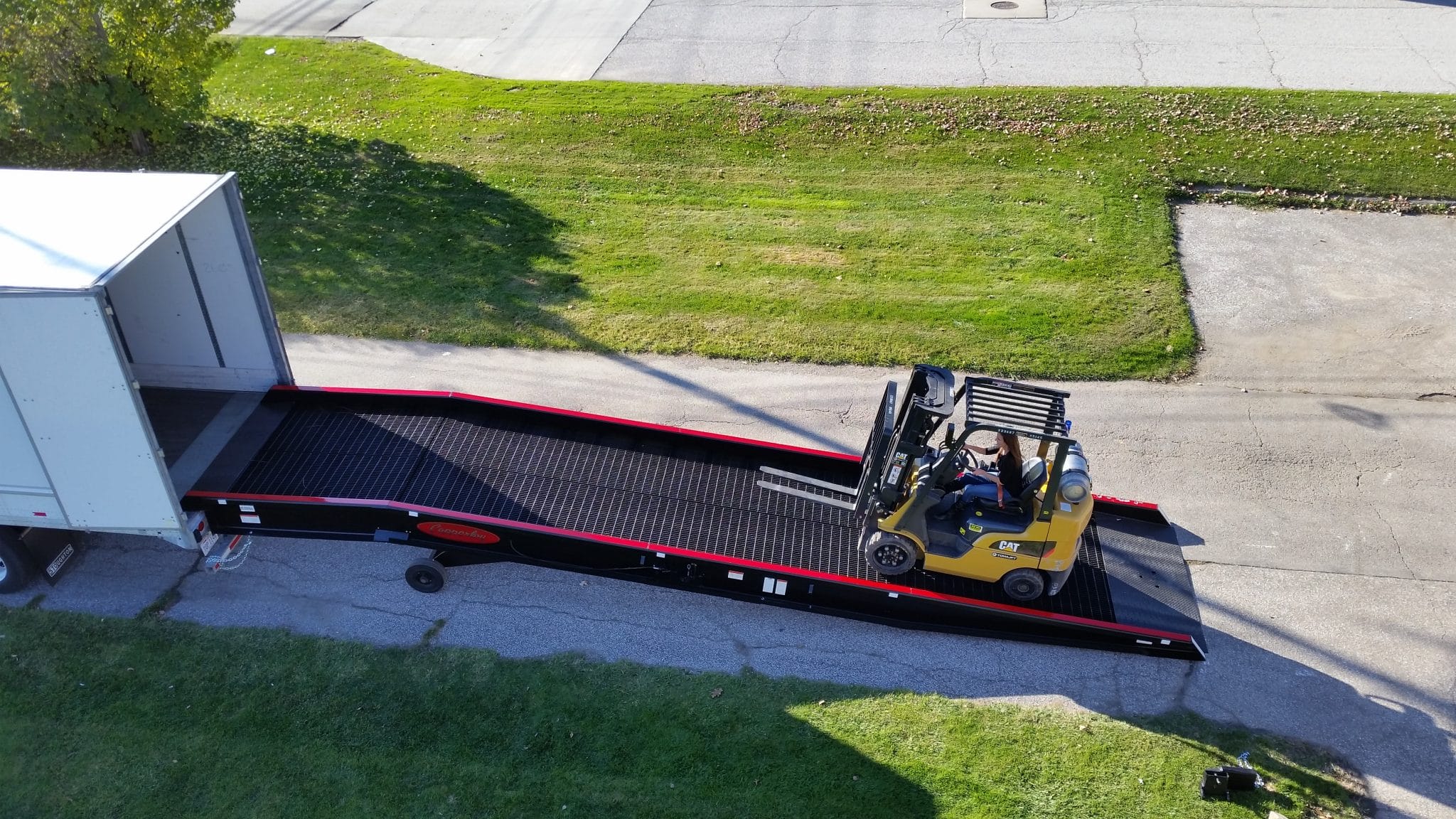

Freight-loading facilities can easily create a dock anywhere in their facility with our loading dock ramps. Whether on a dock or a truck, YARD RAMP Site loading dock ramps offer an efficient and safe way to load and unload with forklifts. With Copperloy, expanding your dock capacity has never been easier or more cost-efficient.
