Semi Truck Ramp | Industry-Leading Ramps
YARD-RAMP-SITE designed a space-efficient semi truck ramp, also known as a tractor trailer ramp, that pushes productivity and improves safety! Additionally, YARD RAMP Site products are made in the U.S.A. Leading the industry in custom fabrication, YARD RAMP Site has mastered America’s ultimate ramp.

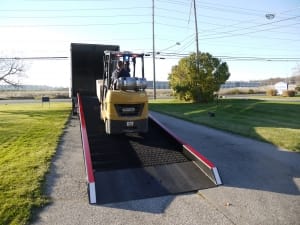

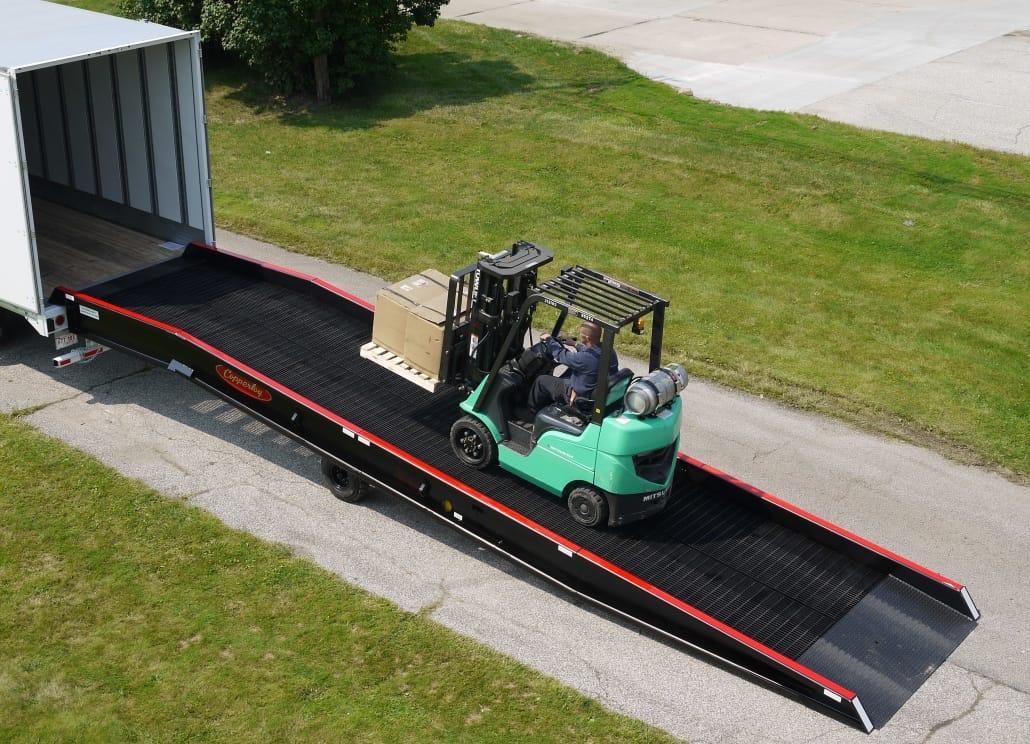

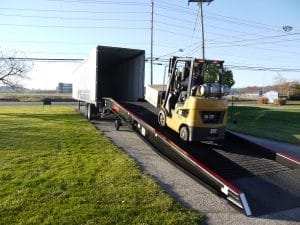

These ground-to-truck ramps provide grade level access to semi-truck beds. Semi-trailer ramps were crafted with industrial use in mind. YARD RAMP Site ramps are available in aluminum or steel.
Transform an open yard or space into a portable loading dock with Copperloy. Our ramps are safe and efficient. Forklifts can easily enter the back of a semi to unload materials. Plus, YARD RAMP Site provides financing options for ramp purchase. To top it all off, rental and certified pre-owned ramps are also available!
Benefits | Semi-Truck Ramp
YARD RAMP Site ramps are full of benefits. Most noteworthy, the ramp operates off of a single-hydraulic system. Meaning, lift times are up to two and a half times quicker than standard, two-cylinder hydraulic systems! Additional benefits include:
- Ease of Operation – Conveniently located, the pump is stored away from damage and debris. Operation and maintenance are a breeze with the relocated pump design!
- Limited wear and tear – Rotate the ramp on a redesigned positioning sleeve. Traditionally, rotation takes place at the ramp connection. Instead, rotation at the positioning sleeve decreases wear and tear.
- Superior stability – YARD RAMP Site greatly reduces the chance of tipping with a centrally located cylinder! Therefore, altering the center of gravity and providing excelled stability.
- Maintenance-free tires – 18″ solid filled, pneumatic tires don’t require any air! Dominate rugged terrain without the worry of punctures or air pressure. Additionally, YARD RAMP Site pneumatic tires come with lubricated-for-life bearings!
Features
Specifications of Steel Semi Truck Ramps
- Length: Up to 36′
- Height: Range from 38″-65″
- Width: 70″ or 84″
- Capacity: 16,000-35,000 pounds
- Ask about custom specifications!
Specifications of Aluminum Semi Ramps
- Length: Up to 36′
- Height: Range from 38″-65″
- Width: 70″ or 84″
- Capacity: 16,000-25,000 pounds
- Ask about custom specifications!
Standard Tractor Trailer Ramp Features
- 7″ safety curbs to prevent accidents
- Steel grating for all-weather traction
- One-cylinder hydraulic pump for a quick rise time
- Positioning sleeve to maneuver 180 degrees into proper position
- 15″ lip to prevent the ramp from pulling away
- Standard, 8′ level off for stability and easy operation. A custom 10′ level off is available! Simply contact Copperloy.
Tractor Trailer Ramps | YARD RAMP Site v. The Competition
Want to see how the YARD RAMP Site yard ramp measures up to the competition? Check it out in the video below.
